D1 |
D2 |
|
公称通径 |
A系列
|
B系列
|
A系列
|
B系列
|
长度
L |
25x20
25x15 |
33_7
33_7 |
32
32 |
26.9
21.3 |
25
18 |
51 |
32x25
32x20
32x15 |
42.4
42.4
42.4 |
38
38
38 |
33.7
26.9
21.3 |
32
25
18 |
51 |
40x32
40x25
40x20 |
48.3
48.3
48.3 |
45
45
45 |
42.4
3317
26.9 |
38
32
25 |
64 |
50x40
50x32
50x25 |
60.3
60.3
60.3 |
57
57
57 |
48.3
42.4
33.7 |
45
38
32 |
76 |
65x50
65x40
65x32 |
76.1
76.1
76.1 |
76
76
76 |
60.3
48.3
42.4 |
57
45
38 |
89 |
80x65
80x50
80x40 |
88.9
88.9
88.9 |
89
89
89 |
76.1
60.3
48.3 |
76
57
45 |
89 |
100x80
100x65
100x50 |
88.9
114.3
114.3 |
108
108
108 |
88.9
76.1
60.3 |
89
76
57 |
102 |
125x100
125x80
125x60 |
114.3
139.7
139.7 |
133
133
133 |
114.3
88.9
76.1 |
108
89
76 |
127 |
150x125
150x100
150x80 |
139.7
168.3
168.3 |
159
159
159 |
139.1
114.3
88.9 |
133
108
89 |
140 |
200x150
200x125
200x100 |
168.3
219.1
219.1 |
219
219
219 |
168.3
139_7
114.3 |
159
133
108 |
152 |
250x200
250x125
250x150 |
219.1
273
273 |
273
273
273 |
219.1
168.3
139_7 |
219
159
133 |
178 |
300x250
300x200
300x150 |
273
323.9
323.9 |
325
325
325 |
273
219.1
168.3 |
273
219
159 |
203 |
350x300
350x250
350x200 |
323.9
355.6
355.6 |
377
377
377 |
323.9
273
219.1 |
325
273
219 |
330 |
400x350
400x300
400x250 |
355.6
406.4
406.4 |
426
426
426 |
355.6
32.9
273 |
377
325
273 |
356 |
450x400
450x350
450x300 |
406.4
457.O
457.0 |
478
478
478 |
406.4
355.6
323.6 |
426
377
325 |
381 |
500x450
500x400
500x350 |
457.0
508
508 |
529
529
529 |
457.O
406.4
355.6 |
478
426
377 |
508 |
|
 |
公称通径 |
D1 |
D2 |
长度 |
A系列 |
B系列 |
A系列 |
8系列 |
L |
550x500
550x450
550x400 |
559
559
559 |
|
508
457
406 |
529
478
426 |
508 |
600x500
6D0x450
600x400 |
610
610
610 |
630
630
630 |
508
457
406 |
529
478
426 |
508
|
650x600
650x500
650x450 |
660
660
660 |
|
610
508
457 |
630
529
478 |
610 |
700x600
700x500
700x450 |
711
711
711 |
720
720
720 |
610
508
457 |
630
529
478 |
610 |
750x700
750x600
750x500 |
762
762
762 |
|
711
610
508 |
720
630
529 |
610 |
800x700
800x600
800x500 |
813
813
813 |
820
820
820 |
711
610
508 |
720
630
529 |
610 |
850x700
850x600
800×500 |
864
864
864 |
|
711
610
508 |
720
630
529 |
610 |
900x800
900x7D0
900x600 |
914
914
914 |
920
920
920 |
813
711
610 |
820
720
630 |
610 |
1000x900
1000x800
1000x700 |
1016
1016
1016 |
1020
1020
1020 |
914
813
711 |
920
820
720 |
610 |
1050x1000
1050x900
1050x800 |
1067
1067
1067 |
|
1016
914
813 |
1020
920
820 |
610 |
1100x1000
1100x900
1100x800 |
1118
1118
1118 |
1120
1120
1120 |
1016
914
813 |
1020
920
820 |
610 |
1200x1100
1200x1000
1200x900 |
1220
1220
1220 |
1220
1220
1220 |
1118
1016
914 |
1120
1020
920 |
711 |
1300x1200
1300x1100
1300x1000 |
1321
1321
1321 |
1320
1320
1320 |
1220
1118
1016 |
1220
1120
1020 |
711 |
1400x1300
1400x1200
1400x1100 |
1420
1420
1420 |
1420
1420
1420 |
1321
1220
1118 |
1320
1220
1120 |
711 |
1500x1400
1500x1300
1500x1200 |
1524
1524
1524 |
1520
1520
1520 |
1420
1321
1220 |
1420
1320
1220 |
711 |
|

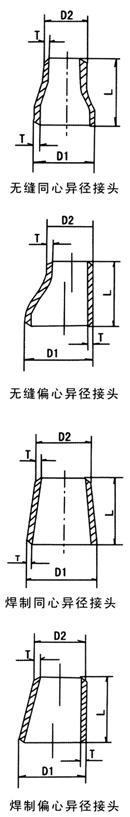

异径接头尺寸mm (GB12459 GB/T13401) (SH3408 SH3409)
